Tupolev Tu-104

Public Joint Stock Company Tupolev

ICAOT104IATA104

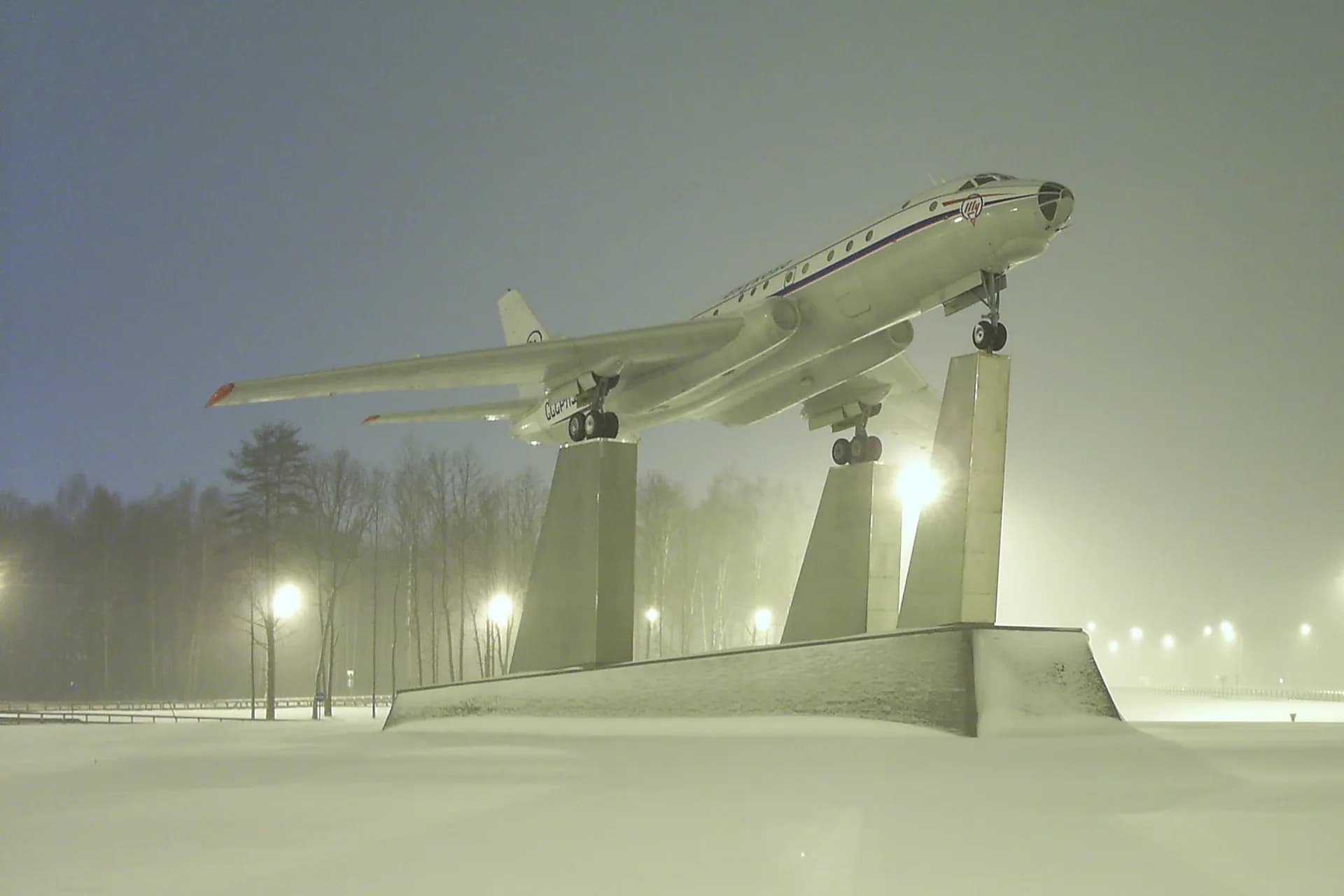

Tupolev Tu-104 aircraft
Public Joint Stock Company TupolevTupolev Tu-104
Photo: Anthony Ivanoff · Public domain · Modified

Details

The Tupolev Tu-104 is a historic Soviet twin-engine medium-range narrow-body jet airliner, representing the first successful jet airliner of Soviet design and the world's only operational jet airliner from 1956 to 1958 (following the grounding of the de Havilland Comet). First flown on June 17, 1955, and entering service with Aeroflot on September 15, 1956, the Tu-104 was developed from the Tu-16 twin-jet bomber, sharing the same wing, empennage, and landing gear design but featuring an entirely new fuselage for passenger operations. The aircraft features two Mikulin AM-3 turbojet engines (later AM-3M) mounted within the wing roots, a low-wing monoplane configuration, and tricycle retractable landing gear. The Tu-104 enabled the Soviet Union to provide jet-powered passenger service on domestic and international routes, demonstrating Soviet technological prowess during the Cold War era. The family includes the original Tu-104 with capacity for 50 passengers, the Tu-104A (1957) with lengthened fuselage for 70 passengers and improved AM-3M engines, and the Tu-104B (1959) with further lengthened fuselage accommodating 100-115 passengers and AM-3M-500 engines. Production ceased in 1960 after 201 units were built, with the Tu-104 serving Aeroflot and other Soviet bloc airlines until retirement in the 1980s. NATO reporting name: "Camel".

3

Variants

201

Built

Weightscompared to Boeing 757-300

MTOW (Maximum Takeoff Weight)

76,000kg
0
50k
100k
124k

Empty Weight

41,600kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

115passengers
0
100
200
295

39% of 757-300 maximum capacity

Crew

Total
5
Cockpit
5

Dimensions

Length

38.9m

Wingspan

34.5m

Height

11.9m

Wing Area

183.5m²

Cabin Width

3.40m

Engine Specifications

Engine Count

2×

Engine Model

Mikulin AM-3M

Thrust per Engine

85.0 kN(19109 lbf)

Fuel & Cargo

Fuel Capacity

26,498 L

Production & History

Total Produced

201

Production Status

Out of production

Manufacturing Period

1956–1960

First Flight

June 17, 1955

Entered Service

September 15, 1956
