Tupolev Tu-104A

Public Joint Stock Company Tupolev

ICAOT104IATA104

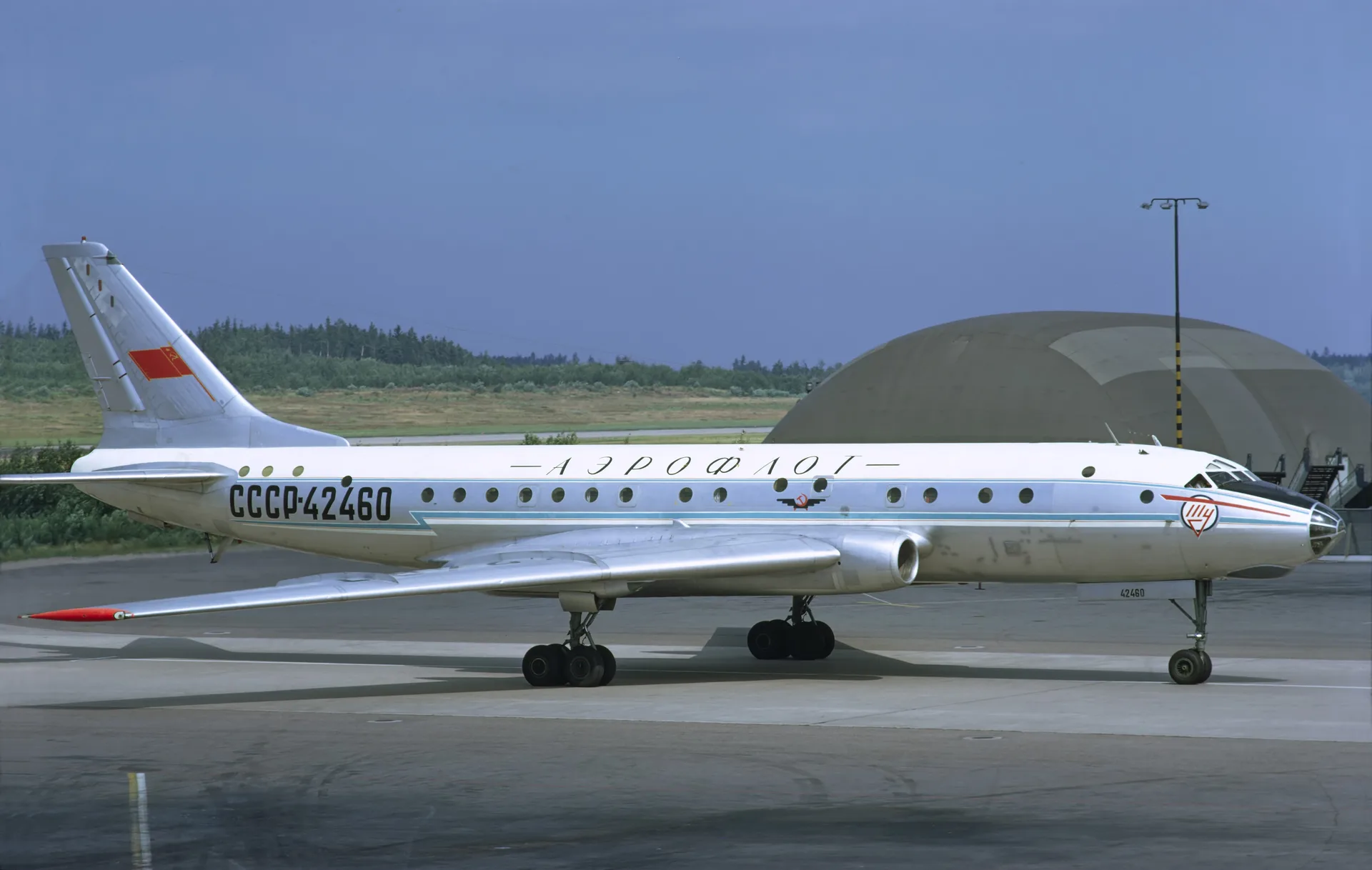

Tupolev Tu-104A aircraft
Public Joint Stock Company TupolevTupolev Tu-104A
Photo: Lars Söderström · CC BY-SA 3.0 · Modified

About

The Tupolev Tu-104A is the first improved production variant of the Tu-104 family, introduced in 1957 with enhanced capacity and powerplant. The Tu-104A features a modestly lengthened fuselage accommodating 70 passengers (increased from 50 in the original), providing better economics for medium-range operations. The variant is powered by upgraded Mikulin AM-3M engines producing 8,700 kgf (85 kN) thrust each - an improvement over the 8,000 kgf AM-3 engines of the original Tu-104 - providing better performance, fuel efficiency, and reliability. The Tu-104A retained the same wingspan (34.54m), wing area (183.5 m²), and general configuration as the original variant, but the fuselage stretch required minor adjustments to maintain proper center of gravity. With a maximum takeoff weight of 76,000 kg and range of 2,650 km, the Tu-104A served as the workhorse of Aeroflot's domestic jet network throughout the late 1950s. The improved passenger capacity and more efficient engines made the Tu-104A more economically viable than the original variant, leading to its widespread deployment across Soviet domestic routes and selected international services to Eastern European destinations.

Weightscompared to Boeing 757-300

MTOW (Maximum Takeoff Weight)

76,000kg
0
50k
100k
124k

Empty Weight

41,600kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

70passengers
0
100
200
295

24% of 757-300 maximum capacity

Crew

Total
5
Cockpit
5

Dimensions

Length

39.0m

Wingspan

34.5m

Height

11.9m

Wing Area

183.5m²

Cabin Width

3.40m

Engine Specifications

Engine Count

2×

Engine Model

Mikulin AM-3M

Thrust per Engine

85.0 kN(19109 lbf)

Fuel & Cargo

Fuel Capacity

26,498 L

Production & History

Production Status

Out of production

Manufacturing Period

1957–1959

First Flight

January 1, 1957

Entered Service

January 1, 1957
