Fokker F27 Friendship

Fokker

ICAOF27

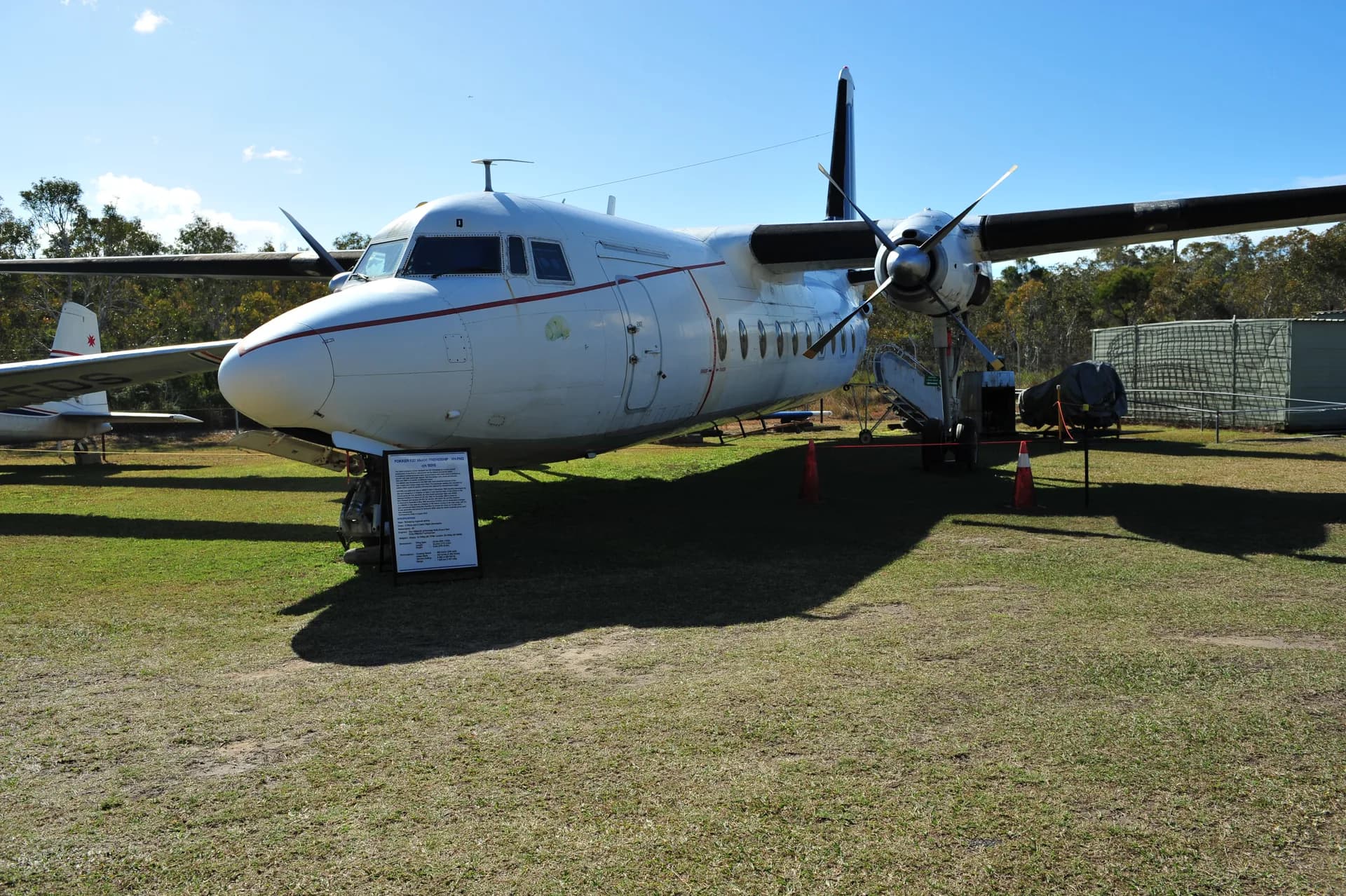

Fokker F27 Friendship aircraft
FokkerFokker F27 Friendship
Photo: thinboyfatter · CC BY 2.0 · Modified

Details

The Fokker F27 Friendship is the best-selling European turboprop airliner ever built and the aeroplane the Fokker 50 was drawn from — the 50 is the F27 Mark 050 on the same certificate. A high wing, two Rolls-Royce Darts and a pressurised cabin for 48, stretched to 59 in the Mark 500, which at 20,820 kg is the heaviest standard the type reaches. Dimensions are EUROCONTROL's figures for the F27 type code rather than the certificate's: EASA TCDS A.036 states no dimension for any Mark, and the source does not distinguish them.

4

Variants

Weightscompared to Airbus A318

MTOW (Maximum Takeoff Weight)

20,820kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

19,730kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

18,230kg
0
25k
53k

Capacitycompared to Airbus A318

Passenger Capacity

59passengers
0
100
132

45% of A318 maximum capacity

Dimensions

Length

23.1m

Wingspan

29.0m

Height

8.5m

Engine Specifications

Engine Count

2×

Engine Model

Rolls-Royce Dart 511, 514, 528, 532, 535, 536, 551 or 552

Fuel & Cargo

Fuel Capacity

5,136 L

Production & History

Production Status

Out of production

First Flight

November 24, 1955
