Pilatus PC-12/47E

Pilatus Aircraft

ICAOPC12

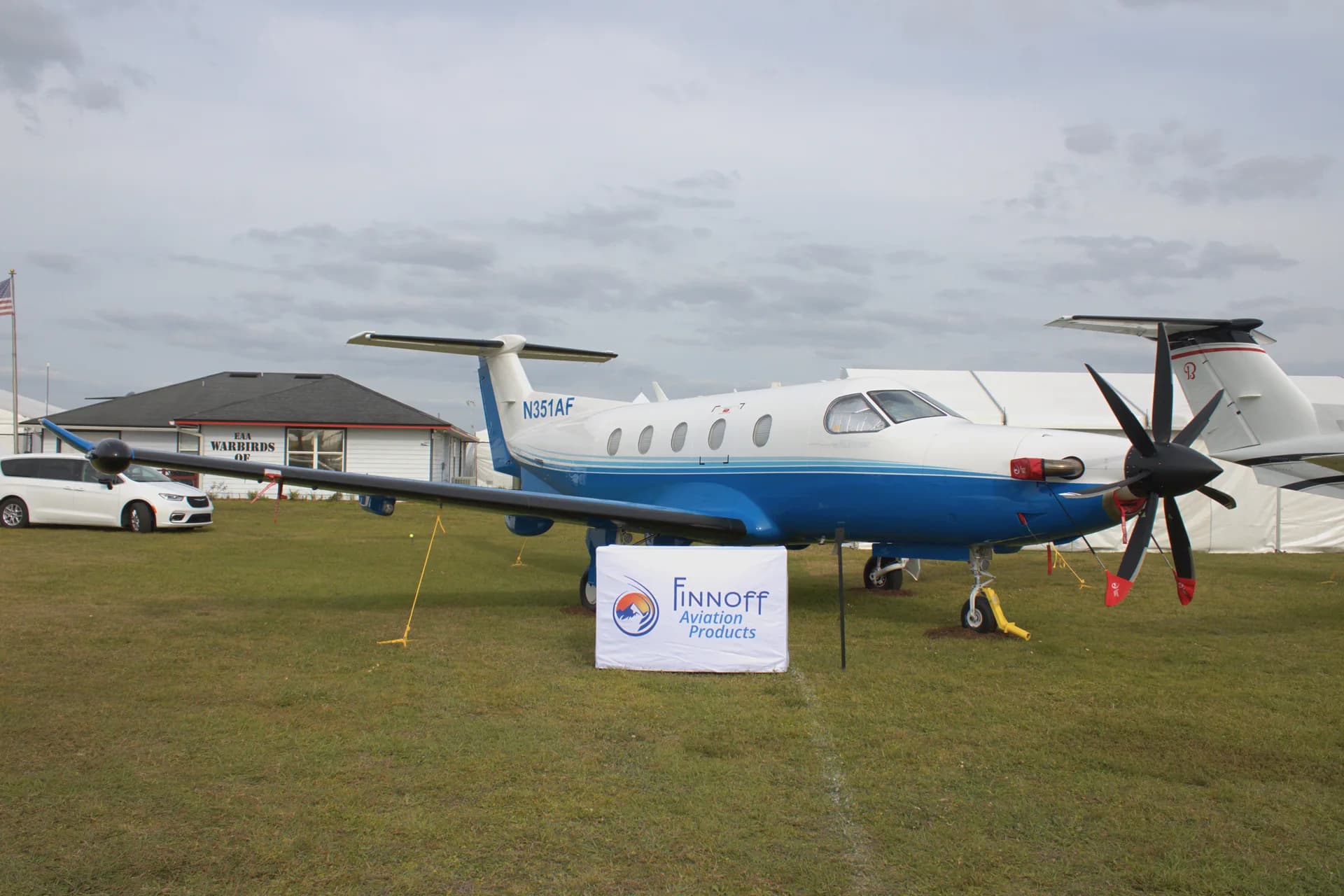

Pilatus PC-12/47E aircraft
Pilatus AircraftPilatus PC-12/47E
Photo: ZLEA · CC BY-SA 4.0 · Modified

About

The /47E is the NG airframe: same 4,740 kg as the /47 on the more powerful PT6A-67P, with the span growing to 16.315 m from serial 1776. It is the widest-span model on the certificate. The cruise speed, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the PC12 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants.

Weightscompared to Airbus A318

MRW (Maximum Ramp Weight)

4,760kg
0
25k
50k
68k

MTOW (Maximum Takeoff Weight)

4,740kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

4,500kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

4,100kg
0
25k
53k

Capacitycompared to Airbus A318

Passenger Capacity

9passengers
0
100
132

7% of A318 maximum capacity

Crew

Total
1
Cockpit
1

Dimensions

Length

14.4m

Wingspan

16.3m

Height

4.3m

Wing Area

25.8m²

Engine Specifications

Engine Count

1×

Engine Model

Pratt & Whitney Canada PT6A-67P turboprop

Fuel & Cargo

Fuel Capacity

1,522 L

Production & History

Production Status

Out of production
