Pilatus PC-12/45

Pilatus Aircraft

ICAOPC12

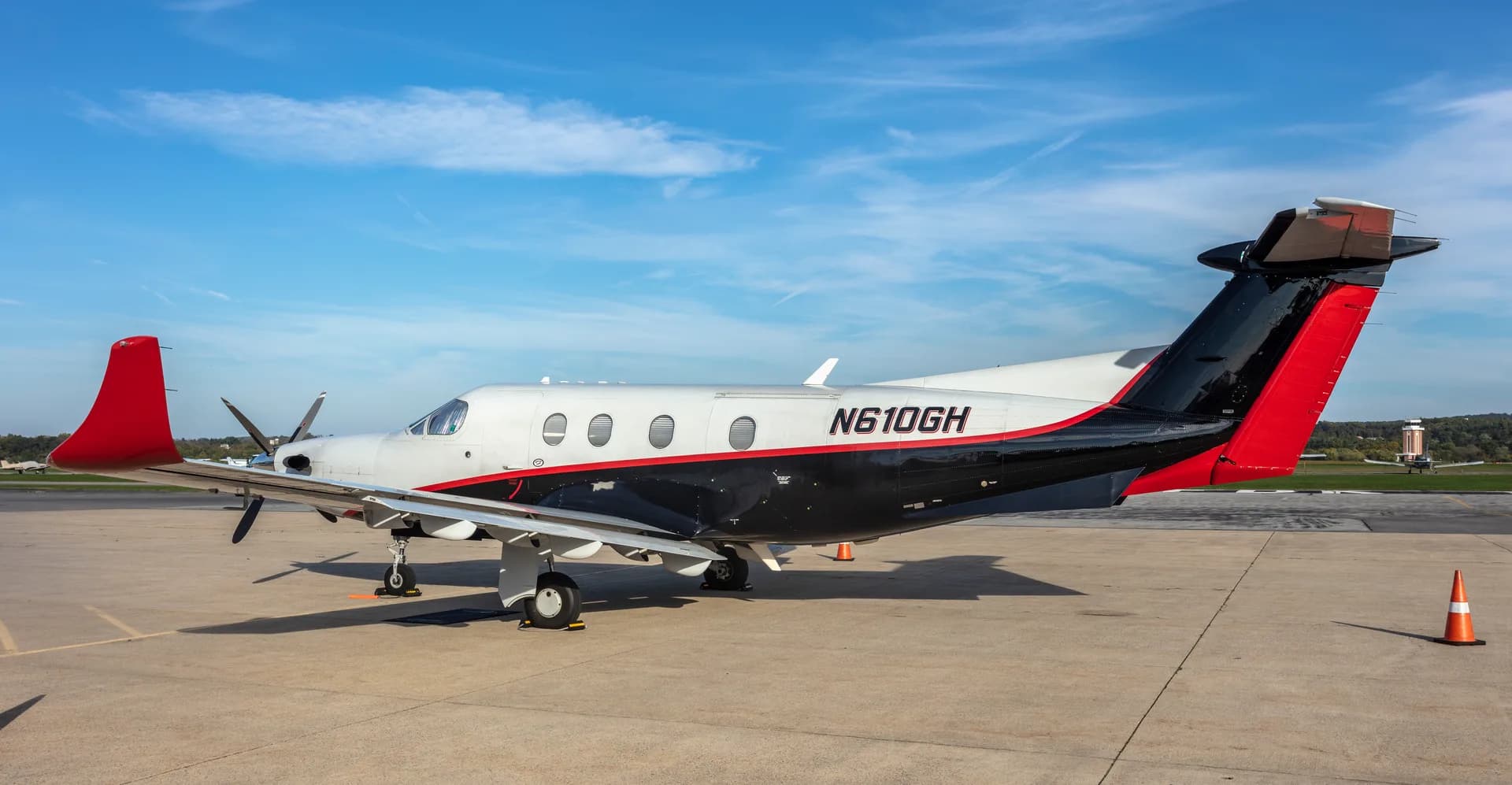

Pilatus PC-12/45 aircraft
Pilatus AircraftPilatus PC-12/45
Photo: Acroterion · CC BY-SA 4.0 · Modified

About

The /45 takes the PC-12 from 4,100 to 4,500 kg on the same PT6A-67B, and from serial 684 gains 50 mm of span. It is the model that made the type commercially serious. The cruise speed, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the PC12 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants.

Weightscompared to Airbus A318

MRW (Maximum Ramp Weight)

4,520kg
0
25k
50k
68k

MTOW (Maximum Takeoff Weight)

4,500kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

4,500kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

4,100kg
0
25k
53k

Capacitycompared to Airbus A318

Passenger Capacity

9passengers
0
100
132

7% of A318 maximum capacity

Crew

Total
1
Cockpit
1

Dimensions

Length

14.4m

Wingspan

16.3m

Height

4.3m

Wing Area

25.8m²

Engine Specifications

Engine Count

1×

Engine Model

Pratt & Whitney Canada PT6A-67B turboprop

Fuel & Cargo

Fuel Capacity

1,522 L

Production & History

Production Status

Out of production
