Ilyushin IL-96-400M

Ilyushin Aviation Complex

ICAOIL96IATAIL9

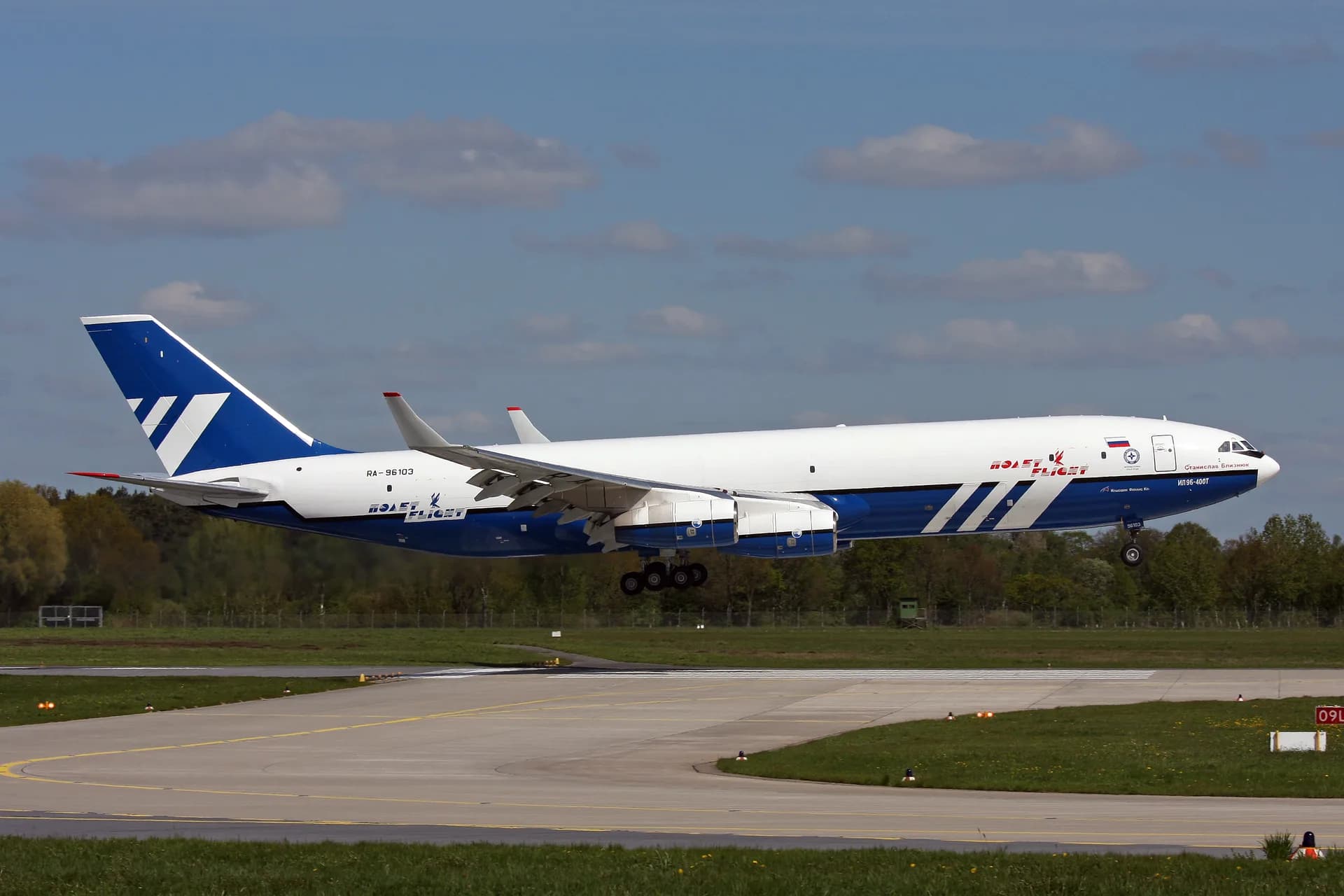

Ilyushin IL-96-400M aircraft
Ilyushin Aviation ComplexIlyushin IL-96-400M
Photo: Björn Strey · CC BY-SA 2.0 · Modified

About

The Ilyushin IL-96-400M is a stretched, long-range variant of the IL-96-300, powered by upgraded Russian PS-90A1 engines. Featuring a 9.35-meter fuselage extension compared to the IL-96-300, the IL-96-400M can accommodate up to 370 passengers in single-class configuration. First developed in the 2000s as a successor to the Western-powered IL-96M (which used Pratt & Whitney engines), the IL-96-400M uses entirely Russian components including four PS-90A1 turbofans producing 171 kN thrust each, ensuring operational independence from Western sanctions. With a maximum takeoff weight of 270 tonnes and range of 8,100 km with 40-tonne payload (13,000 km ferry range), the IL-96-400M serves as Russia's primary domestically-produced wide-body airliner. The aircraft entered mass production planning in 2025 as part of Russia's strategy to rebuild domestic aviation capacity. Key improvements over the IL-96-300 include 9.35m longer fuselage (63.94m total), +70-118 passenger capacity increase, upgraded PS-90A1 engines with 8.75% more thrust, and higher payload capacity (58t vs 40t).

Weightscompared to Airbus A380-800

MTOW (Maximum Takeoff Weight)

270,000kg
0
200k
400k
575k

Capacitycompared to Airbus A380-800

Passenger Capacity

370passengers
0
300
600
853

43% of A380 maximum capacity

Crew

Total
3
Cockpit
3

Dimensions

Length

63.9m

Wingspan

60.1m

Height

15.7m

Cabin Width

5.70m

Engine Specifications

Engine Count

4×

Engine Model

Aviadvigatel PS-90A1

Thrust per Engine

171.0 kN(38442 lbf)

Production & History

Production Status

In production

Manufacturing Period

2007–present

First Flight

January 1, 2007

Entered Service

January 1, 2010
