Boeing 767-300

Boeing Commercial Airplanes

ICAOB763IATA763

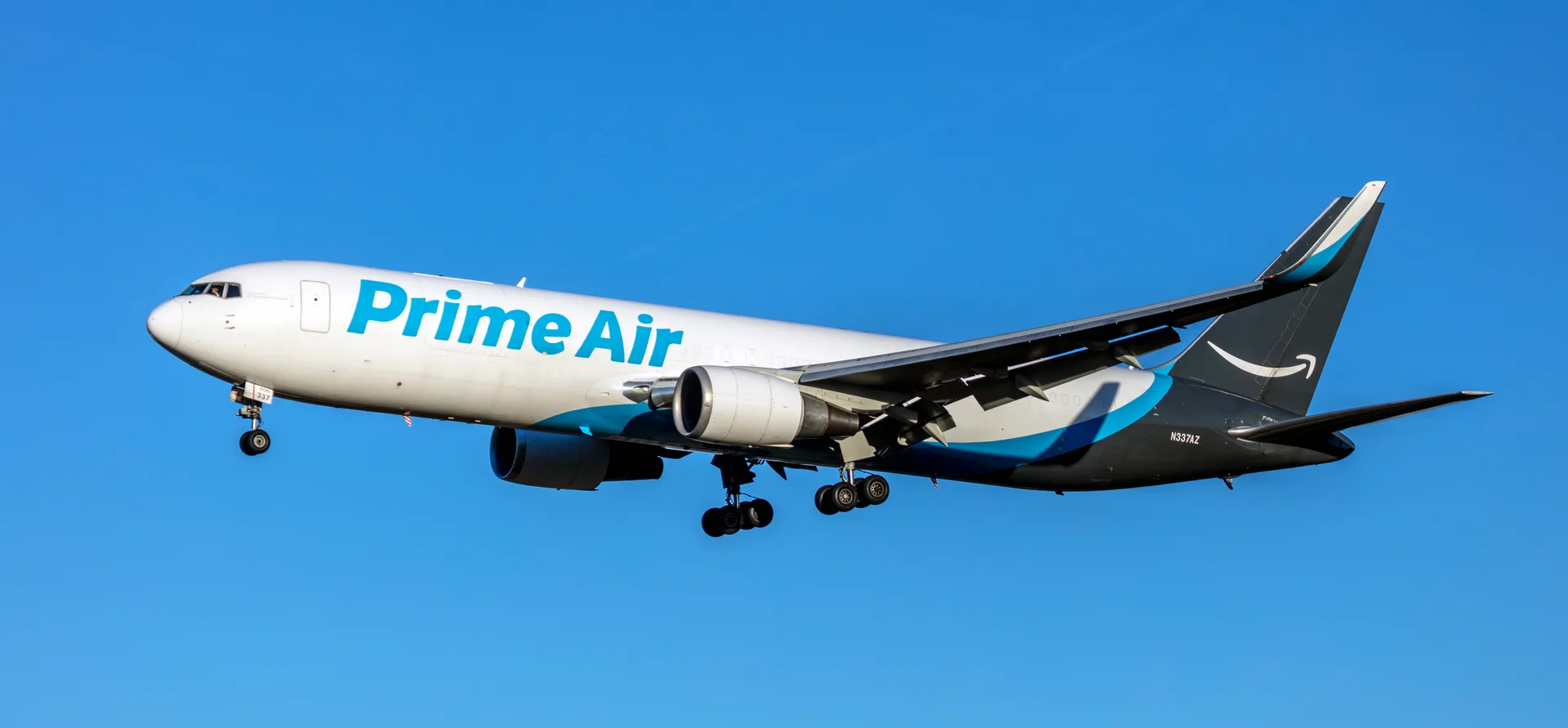

Boeing 767-300 aircraft
Boeing Commercial AirplanesBoeing 767-300
Photo: Acroterion · CC BY-SA 4.0 · Modified

About

The 767-300 is the -200 stretched by 6.43 m, to 54.94 m, on the same 47.57 m wing and the same fuel — six metres of fuselage bought 45 more seats and cost range. It carries 261 in two classes against a certified maximum of 351, and 114 m³ below the floor. As with the -200, the longer-ranged 767-300ER is the same model at a higher approved weight rather than a separate one. The cruise speed, cruise Mach, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the B763 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants. Cabin width and height are Boeing's own, from Boeing D6-58328 REV K, 767 Airplane Characteristics for Airport Planning, section 2.5.1, page 2-23: interior trim to trim 186 in (4.72 m), 82.5 in (2.10 m) floor to ceiling.

Weightscompared to Airbus A380-800

MRW (Maximum Ramp Weight)

159,664kg
0
200k
400k
577k

MTOW (Maximum Takeoff Weight)

158,757kg
0
200k
400k
575k

MLW (Maximum Landing Weight)

136,077kg
0
150k
300k
395k

MZFW (Maximum Zero Fuel Weight)

126,098kg
0
150k
300k
369k

Empty Weight

86,069kg
0
100k
200k
280k

Capacitycompared to Airbus A380-800

Passenger Capacity

351passengers
0
300
600
853

41% of A380 maximum capacity

Crew

Total
2
Cockpit
2

Dimensions

Length

54.9m

Wingspan

47.6m

Height

15.8m

Cabin Width

4.72m

Cabin Height

2.10m

Engine Specifications

Engine Count

2×

Engine Model

General Electric CF6-80C2, Pratt & Whitney JT9D-7R4 or PW4000

Fuel & Cargo

Fuel Capacity

63,216 L

Cargo Volume

114.1 m³

Production & History

Production Status

Out of production

First Flight

January 30, 1986
