Boeing 767-200

Boeing Commercial Airplanes

ICAOB762IATA762

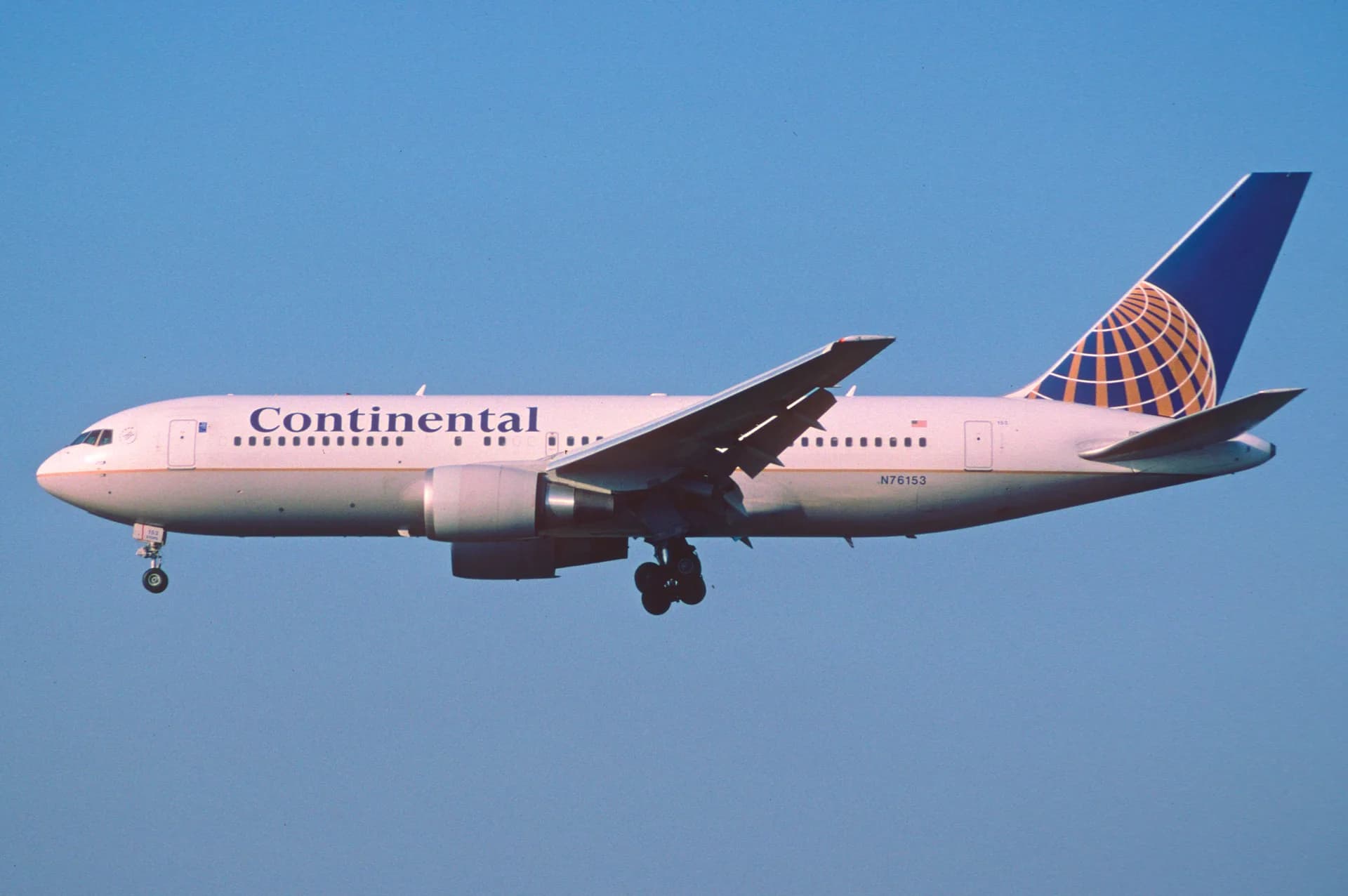

Boeing 767-200 aircraft
Boeing Commercial AirplanesBoeing 767-200
Photo: Aero Icarus from Zürich, Switzerland · CC BY-SA 2.0 · Modified

About

The 767-200 is the original 767 and the aeroplane that made ETOPS ordinary — a twin-aisle twinjet built for routes a widebody four had been too big for. It takes off at 142,881 kg, seats 216 in two classes and is certified for 290 with the second overwing exit fitted. Boeing later sold the same airframe at up to 179,169 kg as the 767-200ER, and the certificate folds that into this model rather than naming it separately. The cruise speed, cruise Mach, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the B762 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants. Cabin width and height are Boeing's own, from Boeing D6-58328 REV K, 767 Airplane Characteristics for Airport Planning, section 2.5.1, page 2-23: interior trim to trim 186 in (4.72 m), 82.5 in (2.10 m) floor to ceiling.

Weightscompared to Airbus A380-800

MRW (Maximum Ramp Weight)

143,788kg
0
200k
400k
577k

MTOW (Maximum Takeoff Weight)

142,881kg
0
200k
400k
575k

MLW (Maximum Landing Weight)

123,377kg
0
150k
300k
395k

MZFW (Maximum Zero Fuel Weight)

113,398kg
0
150k
300k
369k

Empty Weight

80,127kg
0
100k
200k
280k

Capacitycompared to Airbus A380-800

Passenger Capacity

290passengers
0
300
600
853

34% of A380 maximum capacity

Crew

Total
2
Cockpit
2

Dimensions

Length

48.5m

Wingspan

47.6m

Height

15.8m

Cabin Width

4.72m

Cabin Height

2.10m

Engine Specifications

Engine Count

2×

Engine Model

General Electric CF6-80A/80C2, Pratt & Whitney JT9D-7R4 or PW4000

Fuel & Cargo

Fuel Capacity

63,216 L

Cargo Volume

86.9 m³

Production & History

Production Status

Out of production
