Boeing 727-200

Boeing Commercial Airplanes

ICAOB722IATA722

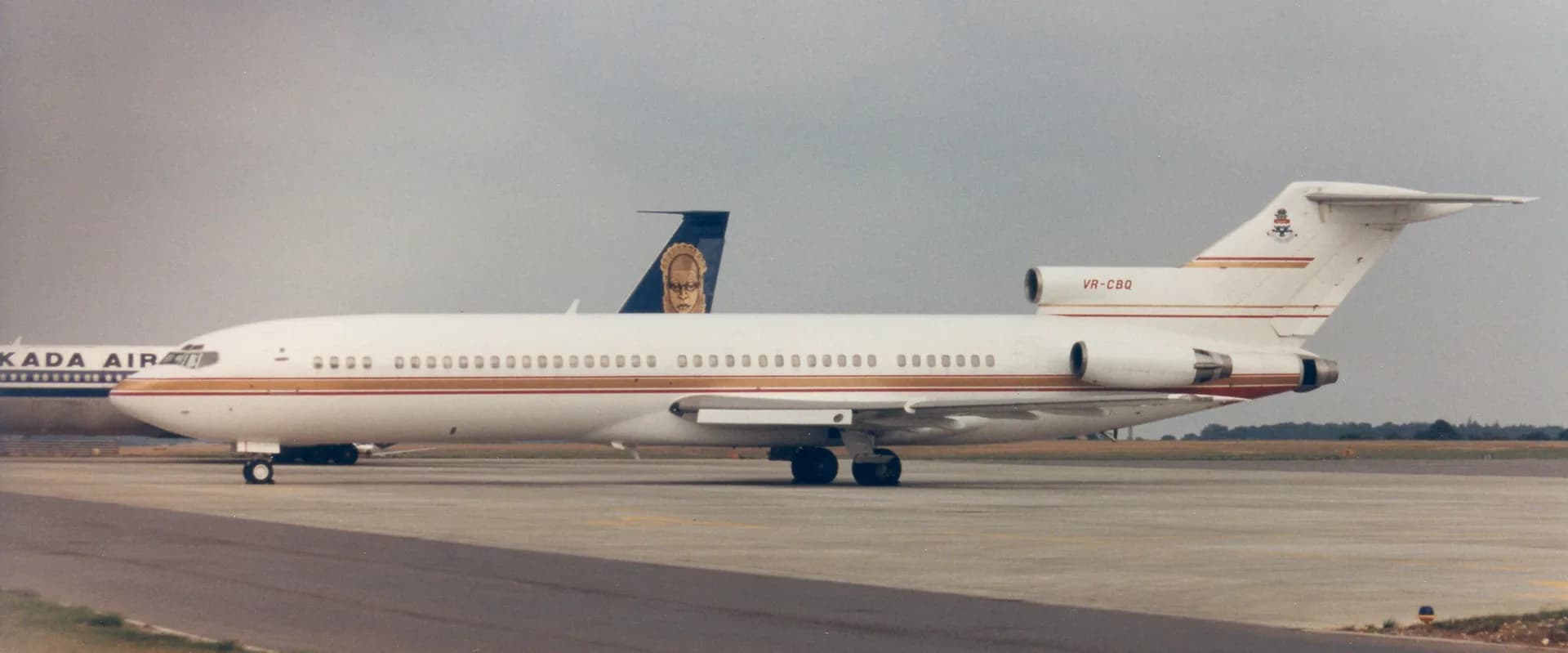

Boeing 727-200 aircraft
Boeing Commercial AirplanesBoeing 727-200
Photo: kitmasterbloke · CC BY 2.0 · Modified

About

The 727-200 is the 727-100 stretched by 6.1 m, to 46.68 m, on the same 32.92 m wing. It seats 134 in two classes, 155 all-tourist, and is certified for 189 — its exit limit. Boeing calls this the standard 727-200 to distinguish it from the Advanced, and gives it a single weight standard at 173,000 lb ramp against the Advanced's four. The cruise speed, cruise Mach, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the B722 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants. Cabin width and height are Boeing's own, from Boeing D6-58324, 727 Airplane Characteristics for Airport Planning, section 2.5, page 19: interior trim to trim 140 in (356 cm), 86.3 in (219 cm) floor to ceiling.

Weightscompared to Boeing 757-300

MRW (Maximum Ramp Weight)

78,500kg
0
50k
100k
124k

MTOW (Maximum Takeoff Weight)

78,100kg
0
50k
100k
124k

MLW (Maximum Landing Weight)

68,100kg
0
50k
102k

MZFW (Maximum Zero Fuel Weight)

61,700kg
0
50k
95k

Empty Weight

44,330kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

189passengers
0
100
200
295

64% of 757-300 maximum capacity

Dimensions

Length

46.7m

Wingspan

32.9m

Height

10.7m

Cabin Width

3.56m

Cabin Height

2.19m

Engine Specifications

Engine Count

3×

Engine Model

Pratt & Whitney JT8D-11

Thrust per Engine

66.7 kN(14995 lbf)

Fuel & Cargo

Fuel Capacity

30,620 L

Cargo Volume

43 m³

Production & History

Production Status

Out of production

First Flight

July 27, 1967
