Boeing 727-100

Boeing Commercial Airplanes

ICAOB721IATA721

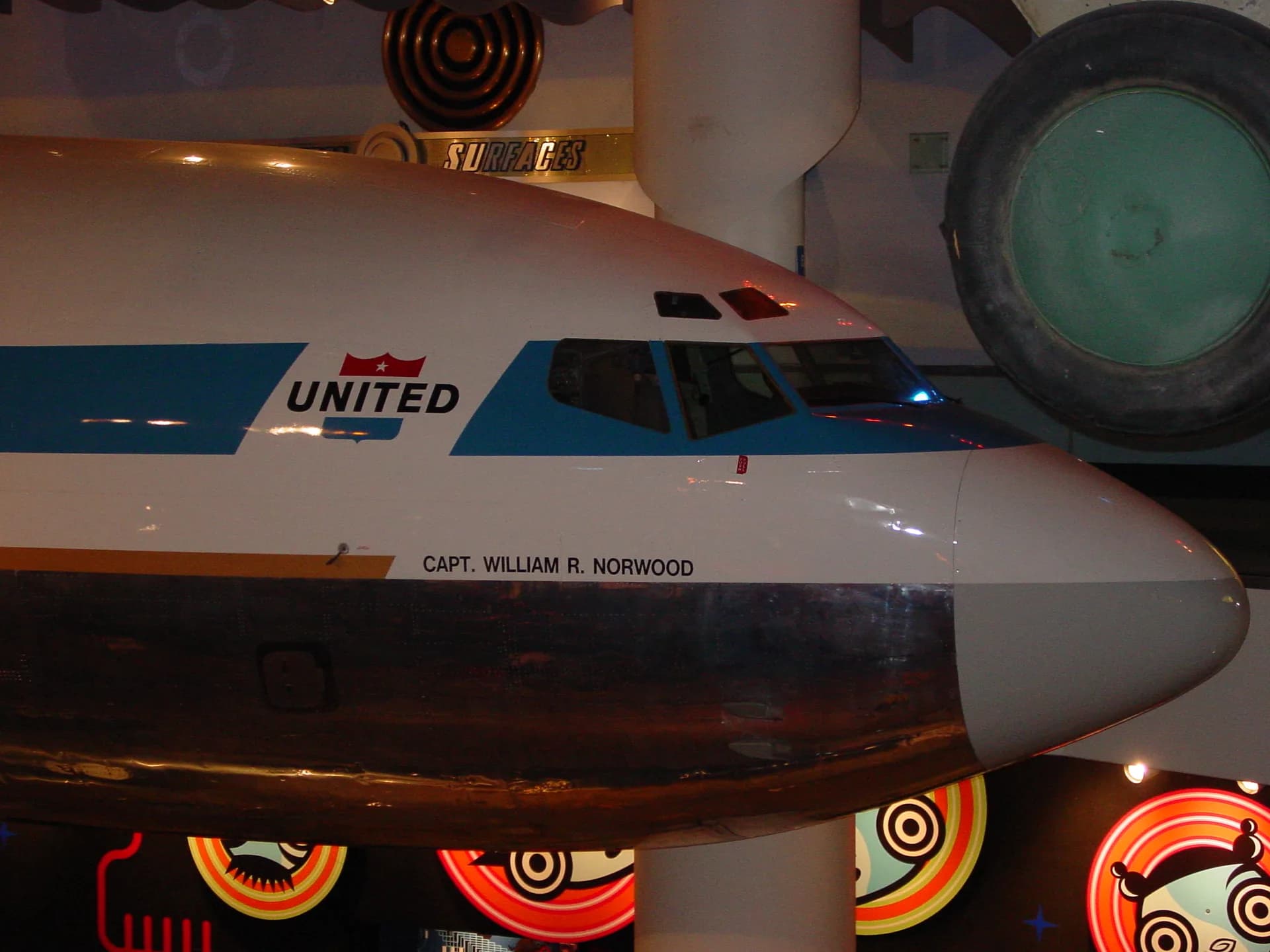

Boeing 727-100 aircraft
Boeing Commercial AirplanesBoeing 727-100
Photo: The original uploader was Pacman5 at English Wikipedia . · CC BY 2.5 · Modified

About

The original 727. Boeing tabulates it at three standards — a basic 161,000 lb ramp weight, an optional one that only raises the landing weight, and an optional 170,000 lb — and this row carries the highest. It seats 106 in a two-class interior, 125 all-tourist, and is certified for 131, which is its exit limit. Early aeroplanes had JT8D-1 engines; the -7 and -9 followed. Cabin width and height are Boeing's own, from Boeing D6-58324, 727 Airplane Characteristics for Airport Planning, section 2.5, page 19: interior trim to trim 140 in (356 cm), 86.3 in (219 cm) floor to ceiling.

Weightscompared to Boeing 757-300

MRW (Maximum Ramp Weight)

77,200kg
0
50k
100k
124k

MTOW (Maximum Takeoff Weight)

76,700kg
0
50k
100k
124k

MLW (Maximum Landing Weight)

64,700kg
0
50k
102k

MZFW (Maximum Zero Fuel Weight)

56,100kg
0
50k
95k

Empty Weight

39,800kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

131passengers
0
100
200
295

44% of 757-300 maximum capacity

Dimensions

Length

40.6m

Wingspan

32.9m

Height

10.4m

Cabin Width

3.56m

Cabin Height

2.19m

Engine Specifications

Engine Count

3×

Engine Model

Pratt & Whitney JT8D-9

Thrust per Engine

64.5 kN(14500 lbf)

Fuel & Cargo

Fuel Capacity

29,069 L

Cargo Volume

25 m³

Production & History

Production Status

Out of production

First Flight

February 9, 1963
