McDonnell Douglas MD-83

Douglas/McDonnell Douglas

ICAOMD83IATAM83

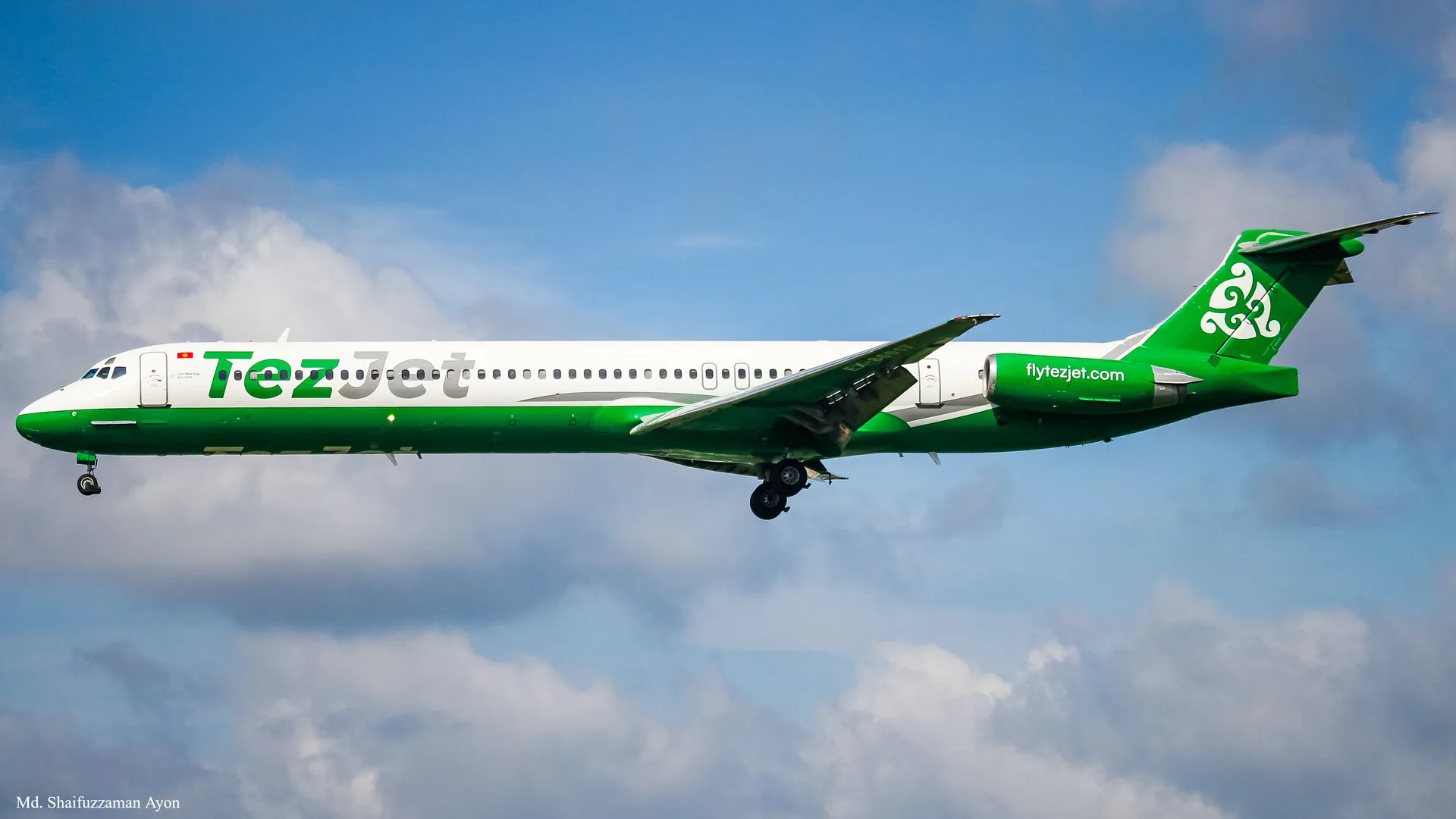

McDonnell Douglas MD-83 aircraft
Douglas/McDonnell DouglasMcDonnell Douglas MD-83
Photo: Md Shaifuzzaman Ayon · CC BY-SA 4.0 · Modified

About

The McDonnell Douglas MD-83 represents the longest-range MD-80 variant, optimized for transcontinental and extended overwater operations. Introduced in 1985, it retained the standard 45.06-meter fuselage seating 155-172 passengers but featured the most powerful JT8D-219 engines producing 93.4 kN (21,000 lbf) thrust each and maximum fuel capacity. These enhancements extended range to 4,635 km (2,504 NM)—sufficient for coast-to-coast US flights with full passenger loads and reserve fuel. The MD-83 also featured increased maximum takeoff weight (72,575 kg) to accommodate the additional fuel. Alaska Airlines became a major operator, using the MD-83 for transcontinental and Hawaiian routes. American Airlines, SAS, and Spanair also operated significant fleets. The variant's extended range opened new route possibilities for medium-capacity operations, competing effectively against larger widebody aircraft on thinner long-haul markets. The MD-83's reliability and fuel efficiency made it economically viable even as fuel prices rose. A total of 265 MD-83s were built. Many remain in service with cargo operators, benefiting from the powerful engines and robust airframe.

Weightscompared to Boeing 757-300

MRW (Maximum Ramp Weight)

73,028kg
0
50k
100k
124k

MTOW (Maximum Takeoff Weight)

72,575kg
0
50k
100k
124k

MLW (Maximum Landing Weight)

63,276kg
0
50k
102k

MZFW (Maximum Zero Fuel Weight)

55,338kg
0
50k
95k

Empty Weight

36,145kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

172passengers
0
100
200
295

58% of 757-300 maximum capacity

Crew

Total
6
Cockpit
2
Cabin
4

Dimensions

Length

45.1m

Wingspan

32.8m

Height

9.1m

Wing Area

112.3m²

Catalog Price

Base List Price

$28M USD

1986 catalog price

Note: Actual prices vary based on configuration, options, and negotiations. This represents the manufacturer's base catalog price.

Engine Specifications

Engine Count

2×

Engine Model

Pratt & Whitney JT8D-219

Thrust per Engine

93.4 kN(20997 lbf)

Fuel & Cargo

Fuel Capacity

23,814 L

Cargo Volume

35.5 m³

Production & History

Total Produced

265

Production Status

Out of production

Manufacturing Period

1984–1999

First Flight

December 17, 1984

Entered Service

February 26, 1985
