Ilyushin IL-62 Classic

Ilyushin Aviation Complex

ICAOIL62IATAIL6
Ilyushin IL-62 Classic aircraft
Ilyushin Aviation ComplexIlyushin IL-62

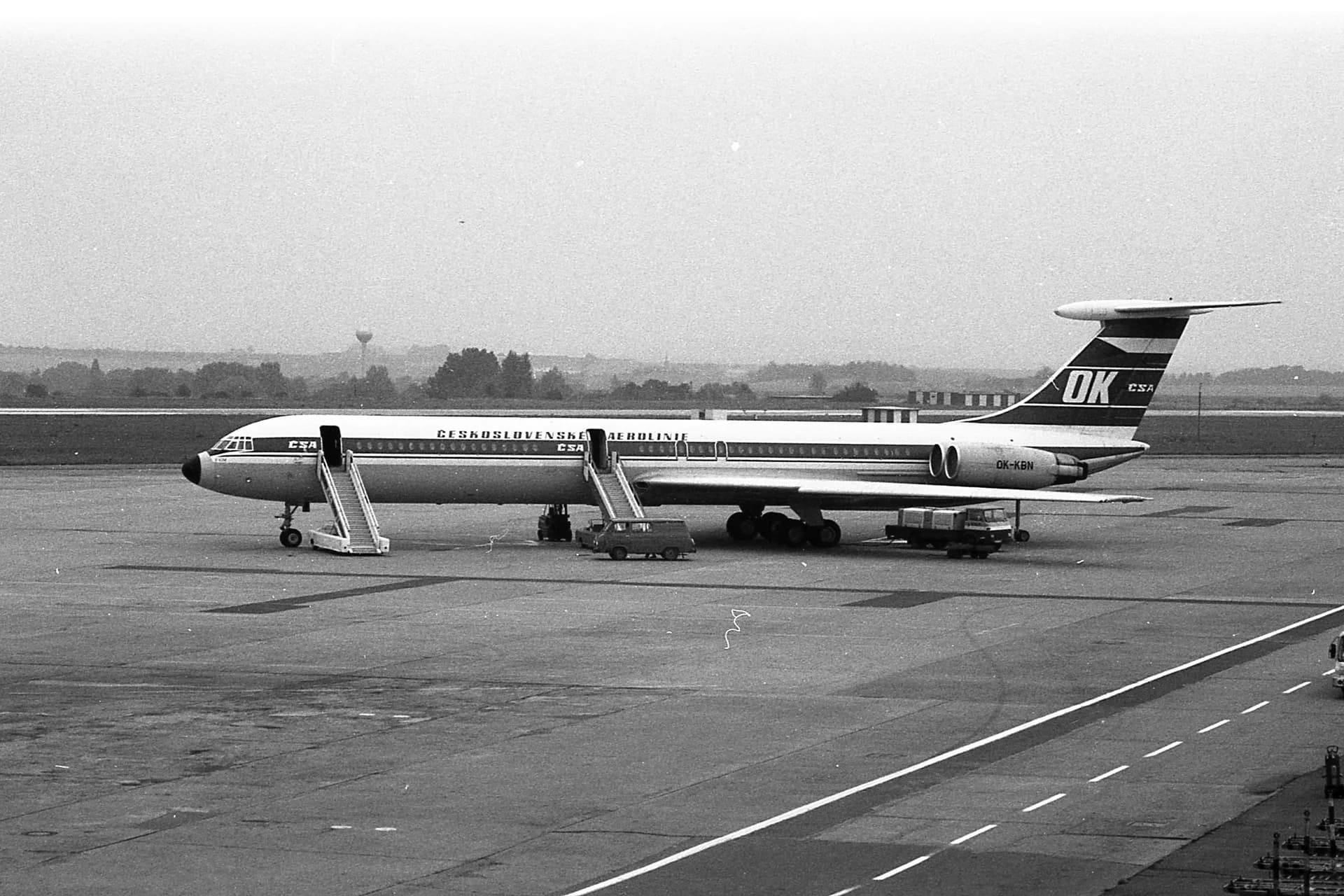

Photograph of the Ilyushin IL-62 family. No photograph on Wikimedia Commons identifies this variant specifically.

Photo: kitmasterbloke · CC BY 2.0 · Modified

About

The Ilyushin IL-62 Classic is the original production variant of the IL-62 family, the first Soviet long-range jetliner. First flown on January 3, 1963, under the command of Captain Vladimir K. Kokkinaki, it was the world's largest jet airliner at the time with capacity for 168-186 passengers. The IL-62 Classic features four Kuznetsov NK-8-4 turbofan engines (103 kN thrust each) mounted in pairs on the rear fuselage, a distinctive T-tail configuration, and a five-person cockpit crew. Entering service with Aeroflot on September 15, 1967, with the inaugural Moscow-Montreal route, the IL-62 Classic enabled the Soviet Union to operate intercontinental flights such as Moscow to New York nonstop. With a maximum takeoff weight of 162,200 kg, range of 9,630 km (5,200 nm), and service ceiling of 11,890m (39,000 ft), the aircraft featured a typical two-class configuration with 12 business class and 138 coach seats (150 total) or high-density single-class seating for 186 passengers. The IL-62 Classic served as the backbone of Soviet long-haul aviation until superseded by the improved IL-62M variant in the early 1970s.

Weightscompared to Boeing 757-300

MTOW (Maximum Takeoff Weight)

162,200kg
0
100k
162k

MLW (Maximum Landing Weight)

105,000kg
0
50k
105k

MZFW (Maximum Zero Fuel Weight)

93,500kg
0
50k
95k

Empty Weight

66,400kg
0
50k
100k

Capacitycompared to Boeing 757-300

Passenger Capacity

186passengers
0
100
200
295

63% of 757-300 maximum capacity

Crew

Total
5
Cockpit
5

Dimensions

Length

53.1m

Wingspan

43.2m

Height

12.4m

Engine Specifications

Engine Count

4×

Engine Model

Kuznetsov NK-8-4

Thrust per Engine

103.0 kN(23155 lbf)

Fuel & Cargo

Fuel Capacity

100,000 L

Production & History

Production Status

Out of production

Manufacturing Period

1963–1970s

First Flight

January 3, 1963

Entered Service

September 15, 1967
