Embraer EMB-110K1

Embraer

ICAOE110IATAEMB
Embraer EMB-110K1 aircraft
EmbraerEmbraer EMB-110 Bandeirante

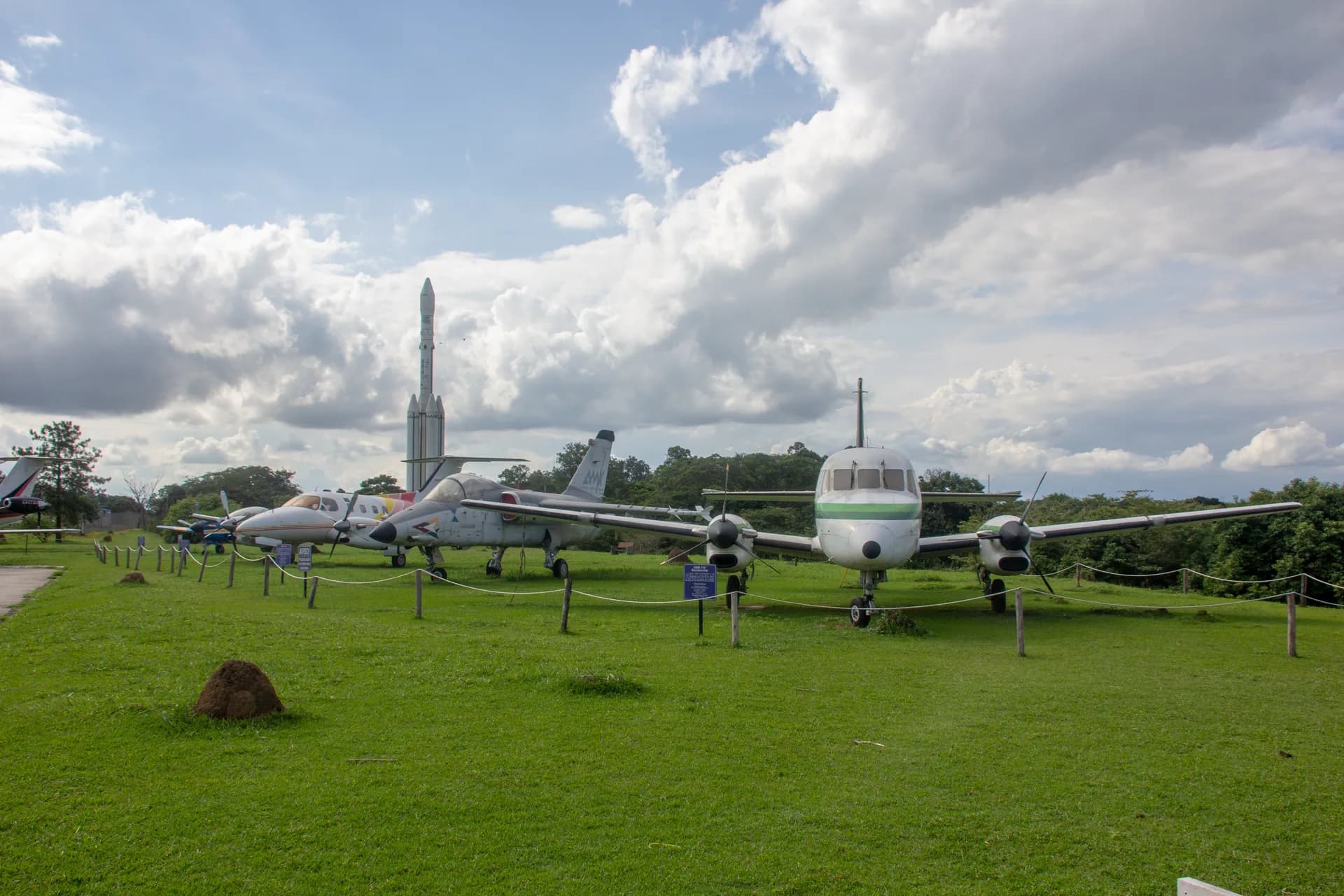

Photograph of the Embraer EMB-110 Bandeirante family. No photograph on Wikimedia Commons identifies this variant specifically.

Photo: Photograph by Mike Peel ( www.mikepeel.net ). · CC BY-SA 4.0 · Modified

About

The freighter Bandeirante, stretched and fitted with a rear cargo door. The certificate approves it for crew only, with a floor loading of 488 kg per square metre and no passenger capacity at all. The cruise speed, range, ceiling, climb rate and take-off distance are EUROCONTROL's figures for the E110 type code rather than a certificate's: a type certificate states limits and weights, not cruise performance, and the source does not distinguish sub-variants.

Weightscompared to Airbus A318

MRW (Maximum Ramp Weight)

5,700kg
0
25k
50k
68k

MTOW (Maximum Takeoff Weight)

5,670kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

5,450kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

5,450kg
0
25k
53k

Dimensions

Length

14.6m

Wingspan

15.3m

Height

4.9m

Wing Area

29.1m²

Engine Specifications

Engine Count

2×

Engine Model

Pratt & Whitney Canada PT6A-34 turboprop

Production & History

Production Status

Out of production
