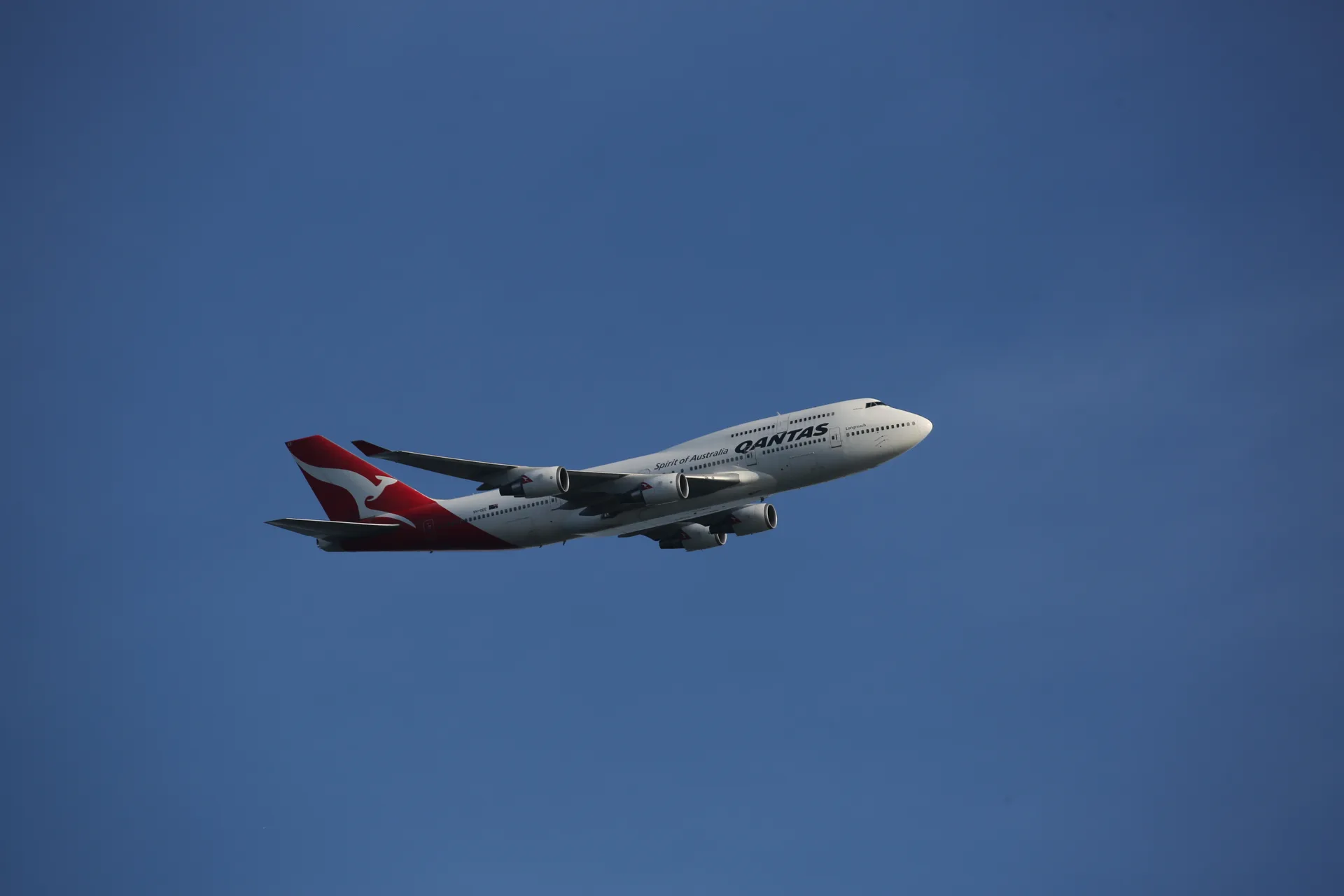

Boeing 747-400ER
Boeing Commercial Airplanes
About
The Boeing 747-400 was the most successful and advanced variant of the classic 747 family. Launched in 1989, it featured winglets, a glass cockpit allowing two-crew operation (eliminating the flight engineer), new engines, increased fuel capacity, and extended range. The 747-400 could fly 13,450 km, opening new non-stop ultra-long-haul routes. It became the dominant long-range aircraft of the 1990s and 2000s, with 694 aircraft delivered including passenger (-400), extended range (-400ER), freighter (-400F), and combi (-400M) variants. The 747-400 represented the pinnacle of four-engine technology before twin-engine aircraft like the 777 took over.
Weightscompared to Airbus A380-800
Capacitycompared to Airbus A380-800
Passenger Capacity
77% of A380 maximum capacity
Crew
Dimensions
Length
Wingspan
Height
Wing Area
Cabin Width
Cabin Height
Sources5 figures on this page
- 747-400 Airplane Characteristics for Airport PlanningD6-58326-1 rev FBoeing Commercial Airplanes · tier 1 · 5 figures · page 28
Catalog Price
Base List Price
$266.5M USD
2007 catalog price
Note: Actual prices vary based on configuration, options, and negotiations. This represents the manufacturer's base catalog price.
Engine Specifications
Engine Count
4×
Engine Model
CF6-80C2, PW4000, or RB211-524
Thrust per Engine
282.0 kN(63396 lbf)
Fuel & Cargo
Fuel Capacity
241,140 L
Cargo Volume
175 m³
Production & History
Production Status
Out of production
First Flight
April 29, 1988
Entered Service
February 9, 1989
