Boeing 747-300

Boeing Commercial Airplanes

ICAOB743

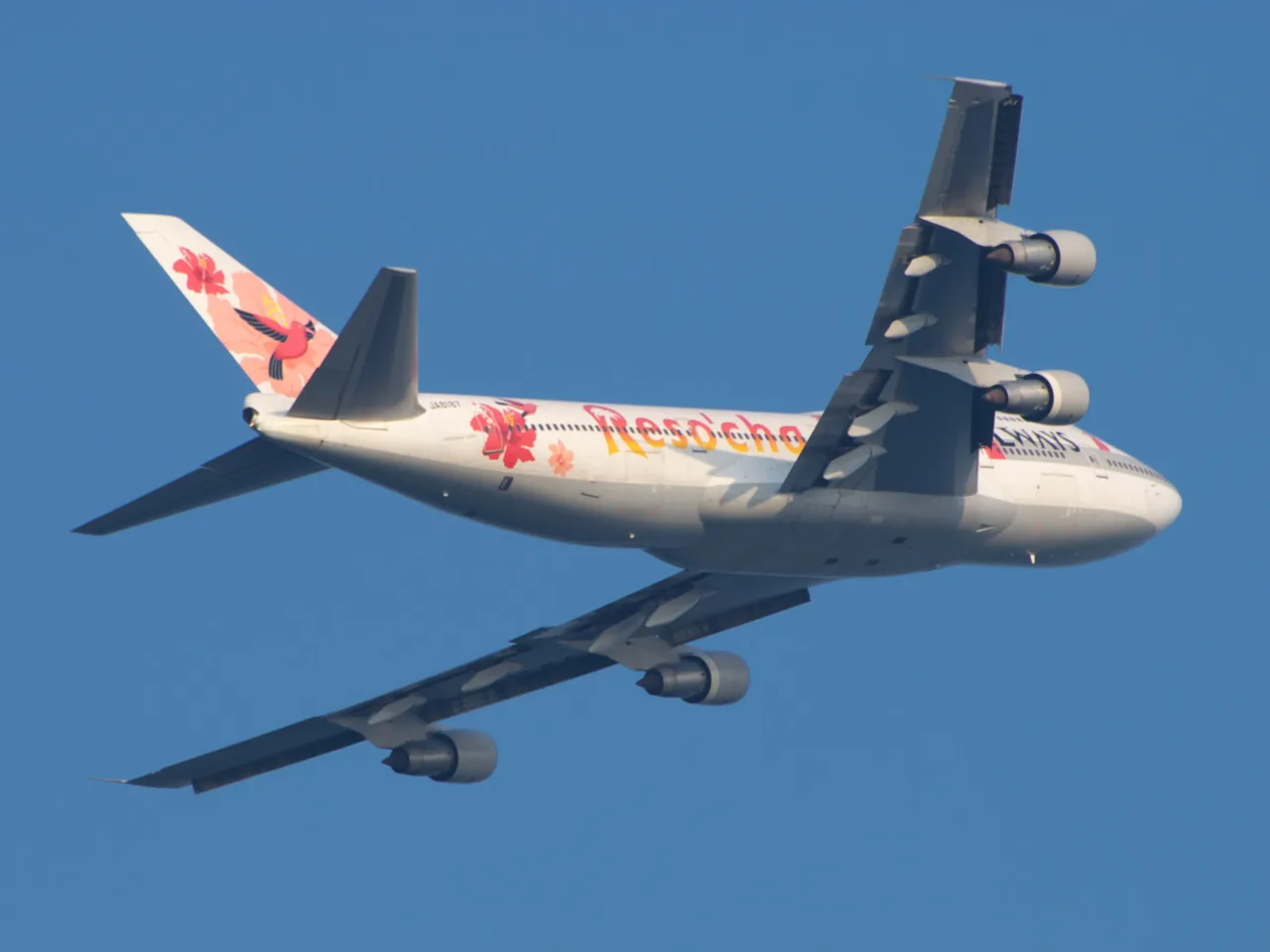

Boeing 747-300 aircraft
Boeing Commercial AirplanesBoeing 747-300
Photo: Yamaguchi Yoshiaki from Japan · CC BY-SA 2.0 · Modified

About

The Boeing 747-300 featured the first major modification to the 747 design with a stretched upper deck (SUD) that extended the iconic hump 23 feet forward. This increased upper deck capacity from 32 to 69 passengers, adding about 20% more seating overall. Introduced in 1983, the 747-300 also featured improved engines and minor aerodynamic refinements. While externally similar to the -200, the extended upper deck became the defining visual feature of later 747s. Only 81 passenger variants were produced as airlines waited for the more advanced 747-400, but the SUD design became standard on all subsequent 747s.

Weightscompared to Airbus A380-800

MRW (Maximum Ramp Weight)

379,203kg
0
200k
400k
577k

MTOW (Maximum Takeoff Weight)

377,842kg
0
200k
400k
575k

MLW (Maximum Landing Weight)

260,362kg
0
150k
300k
395k

MZFW (Maximum Zero Fuel Weight)

240,000kg
0
150k
300k
369k

Empty Weight

174,851kg
0
100k
200k
280k

Capacitycompared to Airbus A380-800

Passenger Capacity

624passengers
0
300
600
853

73% of A380 maximum capacity

Crew

Total
21
Cockpit
3
Cabin
18

Dimensions

Length

70.7m

Wingspan

59.6m

Height

19.3m

Wing Area

511.0m²

Cabin Width

6.10m

Cabin Height

2.54m

Catalog Price

Base List Price

$83M USD

1985 catalog price

Note: Actual prices vary based on configuration, options, and negotiations. This represents the manufacturer's base catalog price.

Engine Specifications

Engine Count

4×

Engine Model

JT9D, CF6-80C2, or RB211-524

Thrust per Engine

236.0 kN(53055 lbf)

Fuel & Cargo

Fuel Capacity

216,840 L

Cargo Volume

170 m³

Production & History

Total Produced

81

Production Status

Retired

Manufacturing Period

1980–1990

First Flight

October 5, 1982

Entered Service

March 23, 1983
