ATR 42

ATR (Avions de Transport Régional)

ICAOAT43IATAAT4

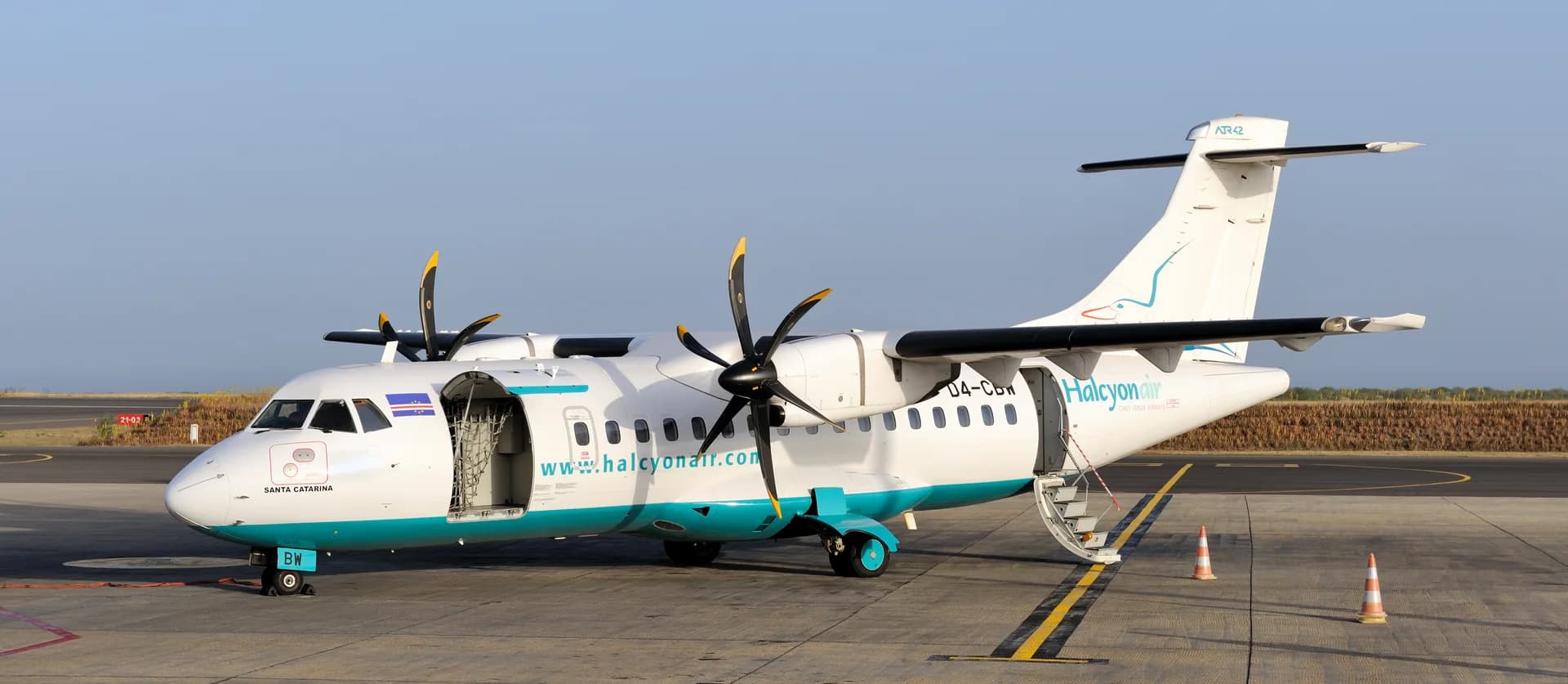

ATR 42 aircraft
ATR (Avions de Transport Régional)ATR 42
Photo: Cayambe · CC BY-SA 3.0 · Modified

Details

The ATR 42 is a twin-turboprop regional airliner developed and manufactured by ATR (Avions de Transport Régional), a joint venture between French aerospace company Aérospatiale (now Airbus) and Italian aerospace company Aeritalia (now Leonardo). First flown in 1984 and entering service in 1985, the ATR 42 was designed as a fuel-efficient regional aircraft for routes of up to 1,500 km. The aircraft features a high-wing configuration, two Pratt & Whitney Canada PW100 series turboprop engines, and typically seats 40-50 passengers in a 2-2 configuration. The family includes multiple variants: the original ATR 42-200, improved ATR 42-300/320, the more powerful ATR 42-400, the enhanced ATR 42-500, and the latest ATR 42-600 featuring new engines and glass cockpit. Known for its reliability, low operating costs, and excellent short-field performance, the ATR 42 has become one of the world's most successful regional turboprops. Over 500 ATR 42s have been delivered worldwide, serving routes where larger aircraft would be uneconomical.

3

Variants

500

Built

Weightscompared to Airbus A318

MRW (Maximum Ramp Weight)

18,770kg
0
25k
50k
68k

MTOW (Maximum Takeoff Weight)

18,600kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

18,200kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

17,200kg
0
25k
53k

Empty Weight

11,550kg
0
25k
40k

Capacitycompared to Airbus A318

Passenger Capacity

50passengers
0
100
132

38% of A318 maximum capacity

Crew

Total
3
Cockpit
2
Cabin
1

Dimensions

Length

22.7m

Wingspan

24.6m

Height

7.6m

Wing Area

54.5m²

Cabin Width

2.57m

Cabin Height

1.91m

Catalog Price

Base List Price

$19.5M USD

2015 catalog price

Note: Actual prices vary based on configuration, options, and negotiations. This represents the manufacturer's base catalog price.

Engine Specifications

Engine Count

2×

Engine Model

PW120 series

Fuel & Cargo

Fuel Capacity

4,800 L

Cargo Volume

11.5 m³

Production & History

Total Produced

500

Production Status

In production

Manufacturing Period

1984–present

First Flight

August 16, 1984

Entered Service

December 3, 1985
