ATR 72

ATR (Avions de Transport Régional)

ICAOAT72IATAAT7

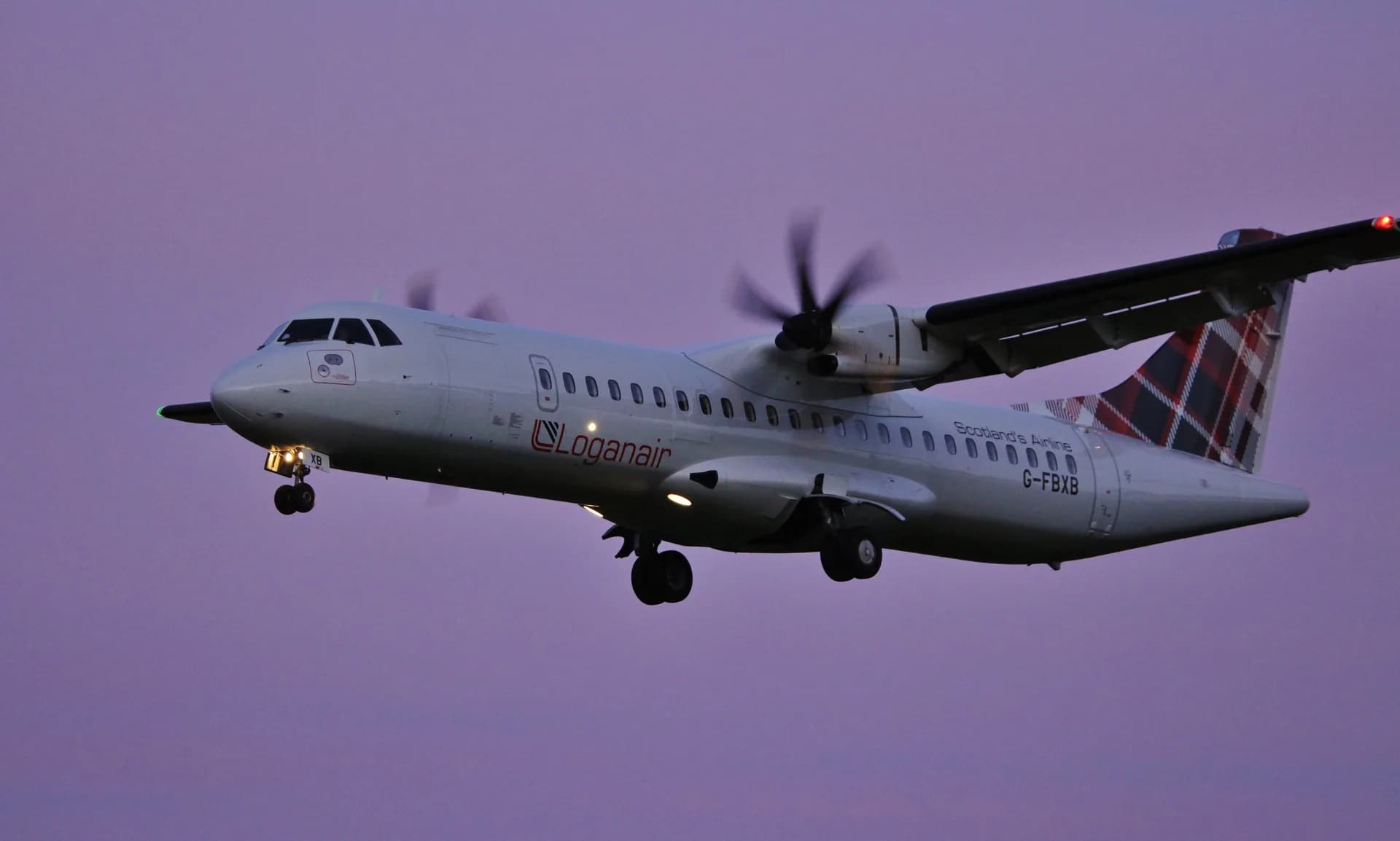

ATR 72 aircraft
ATR (Avions de Transport Régional)ATR 72
Photo: Ronnie Robertson · CC BY-SA 2.0 · Modified

Details

The ATR 72 is a twin-turboprop regional airliner developed and manufactured by ATR as a stretched derivative of the ATR 42. First flown in 1988 and entering service in 1989, the ATR 72 features a fuselage stretch of 4.5 meters compared to the ATR 42, increasing capacity to 68-78 passengers. The aircraft maintains the high-wing configuration and is powered by two Pratt & Whitney Canada PW120 series turboprop engines, with later variants featuring the more powerful PW127 engines. The family includes multiple variants: the original ATR 72-200, the improved ATR 72-500 with glass cockpit and more powerful engines, and the latest ATR 72-600 featuring new engines, avionics, and cabin improvements. The ATR 72 has become the world's best-selling regional turboprop aircraft, with over 1,000 units delivered. Known for exceptional fuel efficiency (40-50% better than regional jets on routes under 500 km), low operating costs, excellent reliability, and outstanding short-field performance, the ATR 72 dominates the 70-seat regional turboprop market.

3

Variants

1,025

Built

Weightscompared to Airbus A318

MRW (Maximum Ramp Weight)

23,170kg
0
25k
50k
68k

MTOW (Maximum Takeoff Weight)

23,000kg
0
25k
50k
68k

MLW (Maximum Landing Weight)

22,350kg
0
25k
50k
56k

MZFW (Maximum Zero Fuel Weight)

21,000kg
0
25k
53k

Empty Weight

13,500kg
0
25k
40k

Capacitycompared to Airbus A318

Passenger Capacity

78passengers
0
100
132

59% of A318 maximum capacity

Crew

Total
4
Cockpit
2
Cabin
2

Dimensions

Length

27.2m

Wingspan

27.1m

Height

7.7m

Wing Area

61.0m²

Cabin Width

2.57m

Cabin Height

1.91m

Catalog Price

Base List Price

$26M USD

2015 catalog price

Note: Actual prices vary based on configuration, options, and negotiations. This represents the manufacturer's base catalog price.

Engine Specifications

Engine Count

2×

Engine Model

PW127M

Fuel & Cargo

Fuel Capacity

5,000 L

Cargo Volume

17 m³

Production & History

Total Produced

1,025

Production Status

In production

Manufacturing Period

1988–present

First Flight

October 27, 1988

Entered Service

October 27, 1989
